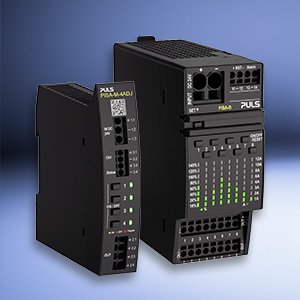

The PISA product family includes electronic circuit breakers with 4-channels and 8-channels. The PISA product family includes electronic circuit breakers with 4-channels and 8-channels.

PISA

The PISA product family includes all electronic circuit breakers which are designed and manufactured by PULS.

The compact supplementary units distribute the current in an application, protect DC 24V load circuits from over-current or short-circuits and monitor the operating status in DC 24V systems. All devices can be mounted easily on a DIN rail.

PISA is the short form for Protect Inform Secure Assist, which shows the intended use of these devices.

Learn more about PISA-B

Learn more about PISA11



电子断路器

对比 订货号 DC 输出 输入 尺寸
宽x高x深 (mm)
特殊特性
新建
30A DC 19.2-30V 52 124 130 8 通道;输出:8x NEC Class 2;每通道 3.75A;常用警报信号
新建
30A DC 19.2-30V 52 124 130 8 通道;输出:8x NEC Class 2;每通道 3.75A;数字编码警报信号
新建
40A DC 19.2-30V 52 124 130 8 通道;输出:2x 1-12A、6x 1-10A;常见警报信号
新建
40A DC 19.2-30V 52 124 130 8 通道;输出:2x 1-12A、6x 1-10A;数字编码警报信号
24V 4A DC 18-30V 45 75 91 4-通道;输出:4x 1A
24V 8A DC 18-30V 45 75 91 4 通道;输出:4x 2A
24V 12A DC 18-30V 45 75 91 4 通道;输出:4x3A
24V 16A DC 18-30V 45 75 91 4 通道;输出:4x4A
24V 20A DC 18-30V 45 75 91 4-通道保护模块;输出:4x6A
24V 20A DC 18-30V 45 75 91 4-通道保护模块;输出:4x10A
24V 18A DC 18-30V 45 75 91 4 通道;输出:2x 3A 和 2x 6A
24V 20A DC 18-30V 45 75 91 4 通道;输出:2x 6A 和 2x 12A
24V 14.8A DC 18-30V 45 75 91 4 通道;输出:4x NEC Class 2 认证;每个通道 100VA
