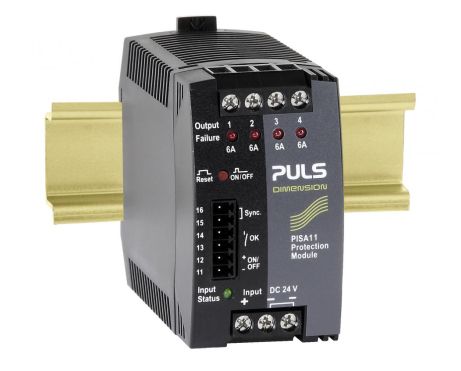

PISA11.406
电子断路器
24 V, 20 A 4-通道保护模块；输出：4x6A
数据表
24 V, 20 A 4-通道保护模块；输出：4x6A
| DC 输出 | DC 24 V |
|---|---|
| 6 A , 6 A , 6 A , 6 A | |
| 输入 | DC 18 V - 30 V |
| 尺寸（宽x高x深） | 45 x 75 x 91 mm |
| 重量 | 120 g |
输入数据
| DC输入电压 | DC 18 V - 30 V |
|---|---|
| 空载时的DC输入电流 典型值 | 43 mA |
| 启动输出所需的输入电压 典型值 | 21.4 Vdc |
| 输入电压防护等级 最小/最大 | 21 - 21.8 Vdc |
输出数据
| 调压范围 | 24 - 28 V |
|---|---|
| 输出电流 | 6 A , 6 A , 6 A , 6 A |
| 输出电流（所有输出总和） | 20 A |
| 输出电流限制 最小/最大 | 20.5 / 30 A |
| 输出端启动延迟 | 270 ms |
| 电路时的关断时间 典型值 | 8 ms |
概述
| 尺寸（宽x高x深） | 45 mm x 75 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 120 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 功率损耗，典型值 | 2.4 W |
| 空载损耗，典型值 | 1.0 W |
| MTBF SN 29500 @ 40 °C (h) | 1942000 h |
