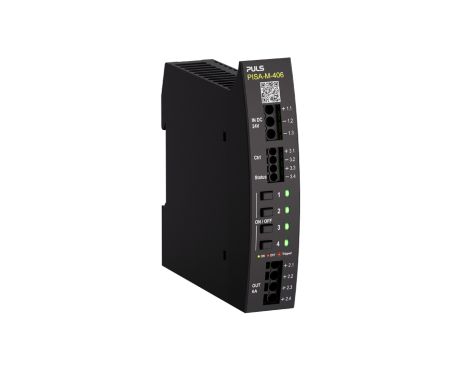

PISA-M-406
新建
电子断路器
24 V, 20 A 4 output channels: Output: 4x 6 A max.20 A
数据表
24 V, 20 A 4 output channels: Output: 4x 6 A max.20 A
| DC 输出 | DC 24 V |
|---|---|
| 输入 | DC 19.2 V - 30 V |
| 尺寸（宽x高x深） | 22.5 x 104 x 98 mm |
| 重量 | 100 g |
输入数据
| DC输入电压 | DC 19.2 V - 30 V |
|---|---|
| 空载时的DC输入电流 典型值 | 30 mA |
| 启动输出所需的输入电压 典型值 | 9.6 Vdc |
输出数据
| 输出电流（所有输出总和） | 20 A |
|---|---|
| 输出端启动延迟 | 350 ms |
概述
| 尺寸（宽x高x深） | 22.5 mm x 104 mm x 98 mm |
|---|---|
| Weight per unit (excl. packaging) | 100 g |
| 安装方式 | DIN导轨 |
| Housing material | 塑料 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | Push-in terminals |
| 功率损耗，典型值 | 3,5 W |
| 空载损耗，典型值 | 0,7 W |
| MTBF SN 29500 @ 40 °C (h) | 1142000 h |
