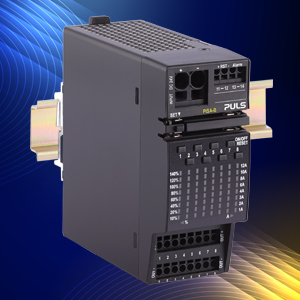

PISA-B

The PISA-B series includes highly efficient electronic circuit breakers. The 8-channel modules distribute the current, protect loads from over-current or short-circuits and monitor the operating status in DC-24V-systems.

PISA-B can identify and isolate individual faulty branches and shuts down the affected channels only. This secures the constant power supply of the remaining loads. An integrated data monitoring reports the operating status to a PLC or control center. The electronic circuit breaker also alarms in case of an error and allows a remote reset of the channels.

PISA-B is based on a modular design. Up to 8 PISA-B units can be connected in parallel by using bus bars.

Learn more about the technical features

电子断路器

对比 订货号 DC 输出 输入 尺寸
宽x高x深 (mm)
特殊特性
新建
30A DC 19.2-30V 52 124 130 8 通道;输出:8x NEC Class 2;每通道 3.75A;常用警报信号
新建
30A DC 19.2-30V 52 124 130 8 通道;输出:8x NEC Class 2;每通道 3.75A;数字编码警报信号
新建
40A DC 19.2-30V 52 124 130 8 通道;输出:2x 1-12A、6x 1-10A;常见警报信号
新建
40A DC 19.2-30V 52 124 130 8 通道;输出:2x 1-12A、6x 1-10A;数字编码警报信号
