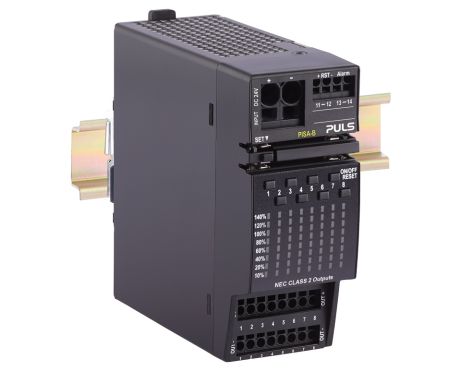

PISA-B-8CL2-B1
电子断路器
24 V, 30 A 8 通道；输出：8x NEC Class 2；每通道 3.75A；常用警报信号
数据表
24 V, 30 A 8 通道；输出：8x NEC Class 2；每通道 3.75A；常用警报信号
| DC 输出 | DC 24 V |
|---|---|
| 输入 | DC 19.2 V - 30 V |
| 尺寸（宽x高x深） | 52 x 124 x 130 mm |
| 重量 | 370 g |
输入数据
| DC输入电压 | DC 19.2 V - 30 V |
|---|---|
| 空载时的DC输入电流 典型值 | 40 mA |
| 启动输出所需的输入电压 典型值 | 19 Vdc |
输出数据
| 输出电流（所有输出总和） | 30 A |
|---|---|
| 输出端启动延迟 | 750 ms |
概述
| 尺寸（宽x高x深） | 52 mm x 124 mm x 130 mm |
|---|---|
| Weight per unit (excl. packaging) | 370 g |
| 安装方式 | DIN导轨 |
| Housing material | 金属 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 插入式接线端子 |
| 功率损耗，典型值 | 7 W |
| 空载损耗，典型值 | 1 W |
| MTBF SN 29500 @ 40 °C (h) | 596000 h |
