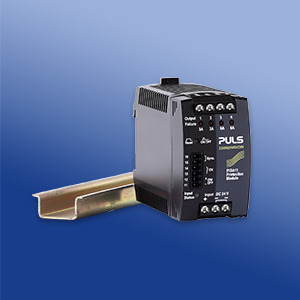

PISA11

The PISA11 series includes various cost-efficient electronic circuit breakers for DC 24V systems.

All PISA11 devices provide one input and four current controlled output channels. The compact electronic circuit breakers ensure a sufficient supply voltage for critical loads even in the event of an fault. PISA11 also protects small cable sizes against overload.

PISA11 is also available as NEC Class 2 version. With this device you are able to install up to 4 NEC Class 2 circuits.

电子断路器

对比 订货号 DC 输出 输入 尺寸
宽x高x深 (mm)
特殊特性
24V 4A DC 18-30V 45 75 91 4-通道;输出:4x 1A
24V 8A DC 18-30V 45 75 91 4 通道;输出:4x 2A
24V 12A DC 18-30V 45 75 91 4 通道;输出:4x3A
24V 16A DC 18-30V 45 75 91 4 通道;输出:4x4A
24V 20A DC 18-30V 45 75 91 4-通道保护模块;输出:4x6A
24V 20A DC 18-30V 45 75 91 4-通道保护模块;输出:4x10A
24V 18A DC 18-30V 45 75 91 4 通道;输出:2x 3A 和 2x 6A
24V 20A DC 18-30V 45 75 91 4 通道;输出:2x 6A 和 2x 12A
24V 14.8A DC 18-30V 45 75 91 4 通道;输出:4x NEC Class 2 认证;每个通道 100VA
