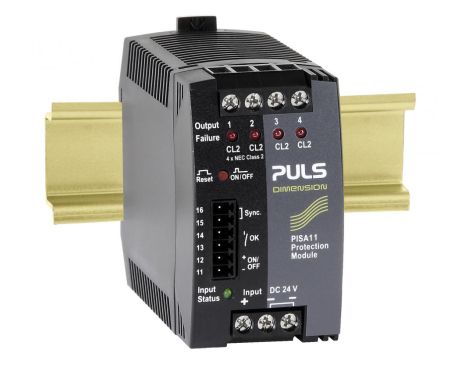

PISA11.CLASS2

Electronic circuit breaker
24V, 14.8A
4 通道;输出:4x NEC Class 2 认证;每个通道 100VA
数据表
DC 输出 DC 24V
3.7A , 3.7A , 3.7A , 3.7A
输入 DC 18V - 30V
尺寸(宽x高x深) 45 x 75 x 91mm
重量 120g
对比
产品状态: 常备库存

输入数据

DC输入电压 DC 18V - 30V
空载时的DC输入电流 典型值 43mA
启动输出所需的输入电压 典型值 21.4Vdc
输入电压防护等级 最小/最大 21 - 21.8Vdc

输出数据

调压范围 24 - 28V
输出电流 3.7A , 3.7A , 3.7A , 3.7A
输出电流(所有输出总和) 14.8A
输出电流限制 最小/最大 16.6 / 23.6A
输出端启动延迟 270ms
电路时的关断时间 典型值 10ms

概述

尺寸(宽x高x深) 45mm x 75mm x 91mm
每台的重量(净重) 120g
工作温度范围 -25°C 至 70°C
安装方式 DIN导轨
功率损耗,典型值 1.6W
空载损耗,典型值 1.0W
平均无故障时间 SN 29500 @ 40°C (h) 2198000h
连接端子类型 螺丝式接线端子
