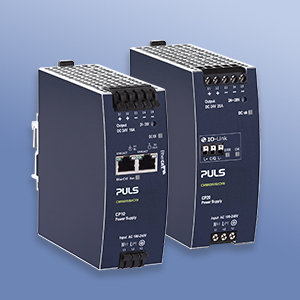

Smart power supplies

PULS supports its customers with a growing line-up of power supplies with communication interface.

The devices provide direct access to a large range of highly informative data-sets that help to monitor, analyse and optimise the complete power supply concept of any machinery – from the quality of the power grid, to the AC input and the DC output as well as the DC distribution.

Learn more about power supplies with EtherCAT.

Learn more about power supplies with IO-Link.

单相系统的DIN导轨电源

对比	订货号	DC 输出		范围	功率	输入	尺寸宽x高x深 (mm)			特殊特性
新建	CP10.241-ETC	24 V	10 A	24-28 Vdc	240 W	AC 100-240 V \| DC 110-300 V	48	124	127	Ethercat
新建	CP20.241-ETC	24 V	20 A	24-28 Vdc	480 W	AC 100-240 V \| DC 110-300 V	48	124	127	Ethercat
新建	CP20.242-IOL	24 V	20 A	24-28 Vdc	480 W	AC 100-240 V \| DC 110-300 V	48	124	127	IO-Link
新建	CP20.481-ETC	48 V	10 A	48-56 Vdc	480 W	AC 100-240 V \| DC 110-300 V	48	124	127	Ethercat

三相系统的DIN导轨电源

对比	订货号		DC 输出		范围	功率	输入	尺寸宽x高x深 (mm)			特殊特性
	QT40.241-B2		24 V	40 A	24-28.5 Vdc	960 W	AC 380-480 V	110	124	143	IO-Link
新建	QT40.241-IOL		24 V	40 A	24-28.5 Vdc	960 W	AC 380-480 V	110	124	143	IO-Link

1-phase IP54, IP65 and IP67 power supply

订货号	DC 输出		范围	功率	输入	尺寸宽x高x深 (mm)			特殊特性
FPS300.245-016-101	24 V	15 A	24-28 Vdc	360 W	AC 100-240 V \| DC 110-300 V	181	183	59	IO-Link \| 输入：7/8" - 3pin \| 输出：1x 7/8" - 5pin
FPS300.245-034-105	24 V	15 A	24-28 Vdc	360 W	AC 100-240 V \| DC 110-300 V	181	183	59	IO-Link \| Input: M12-S \| Output: 2x M12-L
FPS300.245-047-103	24 V	15 A	24-28 Vdc	360 W	AC 100-240 V \| DC 110-300 V	181	183	59	IO-Link \| Input: 7/8" 3 pin \| Output: 2x 7/8” 4 pin
FPS300.245-049-112	24 V	12.5 A	24-28 Vdc	360 W	AC 100-240 V \| DC 110-300 V	181	183	59	IO-Link \| Input: 7/8" 3pin \| Output: 3 x 7/8” 4pin
FPS300.246-049-102	24 V	15 A	24-28 Vdc	360 W	AC 100-240 V \| DC 110-300 V	181	183	59	IO-Link \| Input: 7/8" 3 pin \| Output: 3x 7/8” 4 pin

1-phase IP54, IP65 and IP67 power supply with highline input voltage

对比	订货号		DC 输出		范围	功率	输入	尺寸宽x高x深 (mm)			特殊特性
	FPH500.245-024-103		24 V	25 A	24-28 Vdc	600 W	AC 200-240 V \| DC 200-300 V	181	183	59	IO-Link \| Input: 7/8" 3pin \| Output: 3x M12-L

3-phase IP54, IP65 and IP67 power supply

订货号	DC 输出		范围	功率	输入	尺寸宽x高x深 (mm)			特殊特性
FPT500.245-018-103	24 V	25 A	24-28 Vdc	600 W	AC 380-480 V	181	183	59	IO-Link \| 输入：M12-S \| 输出：2x 7/8" 4pin
FPT500.245-034-105	24 V	25 A	24-28 Vdc	600 W	AC 380-480 V	181	183	59	IO-Link \| 输入：M12-S \| 输出：2x M12-L
FPT500.245-062-117	24 V	25 A	24-28 Vdc	600 W	AC 380-480 V	181	183	59	IO-Link; Input: M12-S \| Output: 2x 7/8” 5pin
FPT500.247-064-102	24 V	25 A	24-28 Vdc	600 W	AC 380-480 V	181	183	59	IO-Link \| Input: 7/8”d \| Output: 1x M12-A; 2x 7/8” - 5pin
