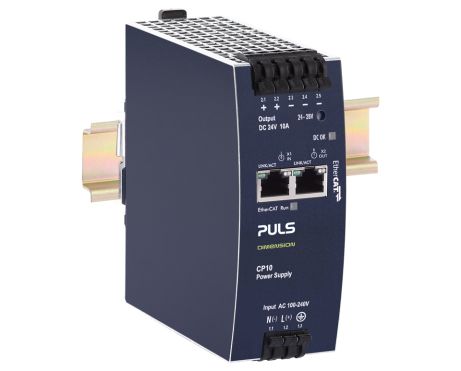

CP10.241-ETC
新建
单相系统的DIN导轨电源
24 V Ethercat
数据表
24 V Ethercat
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 10 - 8.6 A | |
| 240 W | |
| 输入 | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (± 20 %) | |
| 尺寸（宽x高x深） | 48 x 124 x 127 mm |
| 重量 | 660 g |
输入数据
| AC输入电压 | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC输入电压 | DC 110 V - 300 V (± 20 %) |
| 谐波校正 | 主动式 |
| 功率因数 | 0,97 |
| 输入浪涌电流抑制 | 主动式 |
| 输入浪涌电流 | 6 A / 9 A |
| 外部输入保险丝推荐 | B-6 A / C-6 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 10 - 8.6 A |
| 输出电流 | 8.6 A 当 28 V |
| 10 A 当 24 V | |
| 输出功率 | 240 W |
| 功率储备 | 20 % 额外功率 |
| 降额 | 6 W/°C 为 >+60 °C |
概述
| 尺寸（宽x高x深） | 48 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 660 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 弹压式接线端子 |
| 转换效率，典型值 | 94.8 % |
| 功率损耗，典型值 | 13.3 W |
| MTBF SN 29500 @ 40 °C (h) | 395000 h |
