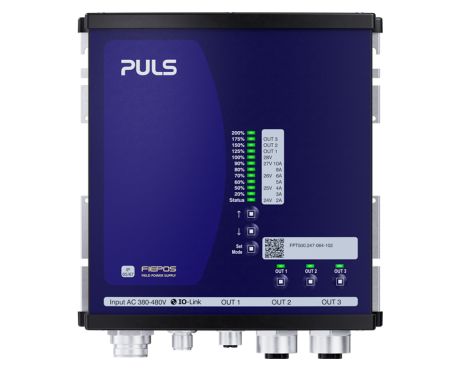

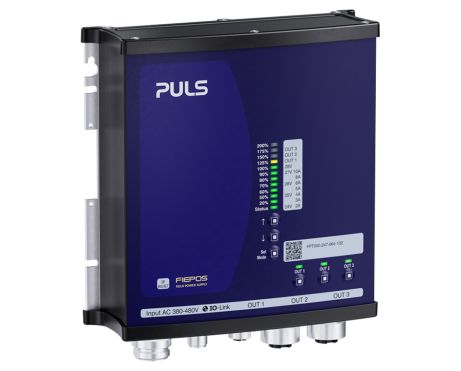

24V, 20A IO-Link | Input: 7/8”d | Output: 1x M12-A; 2x 7/8” - 5pin
|DC 输出||24 - 28Vdc|
|20.8 - 17.9A|
|输入||AC 380 - 480V (± 15%)|
|尺寸（宽x高x深）||181 x 183 x 59mm|
|AC输入电压||AC 380 - 480V (± 15%)|
|输入浪涌电流||1.9A / 1.8A|
|外部输入保险丝推荐||B-6A / C-6A|
|调压范围||24 - 28V|
|输出电流范围||20.8 - 17.9A|
|输出电流||17.9A 当 28V|
|20.8A 当 24V|
|功率储备||1000W (up to 5s)|
|降额||10W/°C 为 +45 to +70°C|
|33W/1000m 为 altitudes >2000m|
|尺寸（宽x高x深）||181mm x 183mm x 59mm|
|Weight per unit (excl. packaging)||1200g|
|工作温度范围||-25°C 至 70°C|
|平均无故障时间 SN 29500 @ 40°C (h)||233000h|
