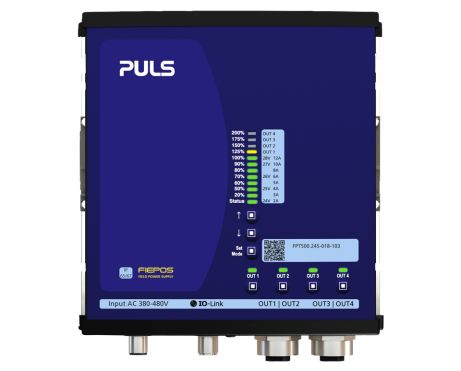

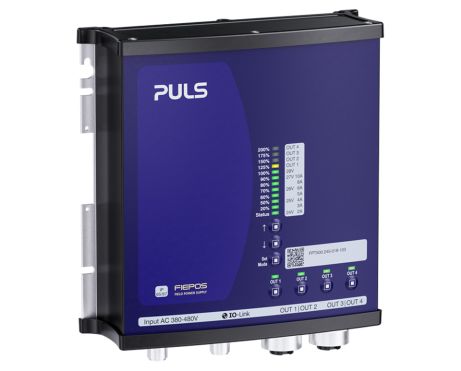

FPT500.245-018-103

新建
3-phase IP54-67 power supply
24 V, 25 A
IO-Link | 输入:M12-S | 输出:2x 7/8" 4pin
数据表
DC 输出 24 - 28 Vdc
25 - 21.4 A
600 W
输入 AC 380 - 480 V (± 15 %)
尺寸(宽x高x深) 181 x 183 x 59 mm
重量 1200 g
对比

输入数据

AC输入电压 AC 380 - 480 V (± 15 %)
功率因数 0.95
输入浪涌电流抑制 主动式
输入浪涌电流 1.9 A / 1.8 A
外部输入保险丝推荐 B-6 A / C-6 A

输出数据

额定电压 24 Vdc
调压范围 24 - 28 V
输出电流范围 25 - 21.4 A
输出电流 21.4 A 当 28 V
25 A 当 24 V
输出功率 600 W
功率储备 1000 W (up to 5s)
降额 10 W/°C 为 +45 to +70 °C
33 W/1000 m 为 altitudes >2000 m
电压纹波与噪声 最大值 100 mVpp

概述

尺寸(宽x高x深) 181 mm x 183 mm x 59 mm
Weight per unit (excl. packaging) 1200 g
工作温度范围 -25 °C 至 70 °C
连接端子类型 Input: M12-S | Output: 7/8" 4pin
转换效率,典型值 95.6 %
功率损耗,典型值 23 W
MTBF SN 29500 @ 40 °C (h) 233000 h
