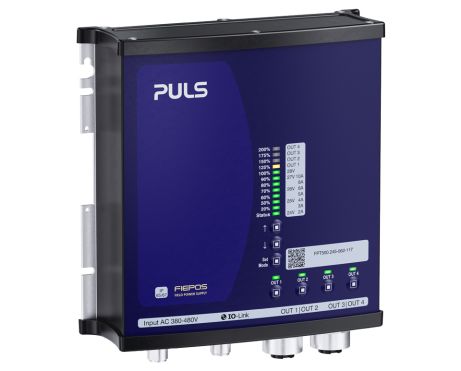

FPT500.245-062-117
3-phase IP54, IP65 and IP67 power supply
24 V, 25 A IO-Link; Input: M12-S | Output: 2x 7/8” 5pin
数据表
24 V, 25 A IO-Link; Input: M12-S | Output: 2x 7/8” 5pin
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 25 - 21.4 A | |
| 600 W | |
| 输入 | AC 380 - 480 V (± 15 %) |
| 尺寸（宽x高x深） | 181 x 183 x 59 mm |
| 重量 | 1200 g |
输入数据
| AC输入电压 | AC 380 - 480 V (± 15 %) |
|---|---|
| 功率因数 | 0.94 |
| 功率因数 | 0.950000 |
| 输入浪涌电流抑制 | 主动式 |
| 输入浪涌电流 | 1.9 A / 1.8 A |
| 外部输入保险丝推荐 | B-6 A / C-6 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 额定电压 | 24 Vdc |
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 25 - 21.4 A |
| 输出电流 | 21.4 A 当 28 V |
| 25 A 当 24 V | |
| 输出功率 | 600 W |
| 功率储备 | 1000 W (up to 5s) |
| 降额 | 10 W/°C 为 +45 to +70 °C |
| 33 W/1000 m 为 altitudes >2000 m | |
| 电压纹波与噪声 最大值 | 100 mVpp |
概述
| 尺寸（宽x高x深） | 181 mm x 183 mm x 59 mm |
|---|---|
| Weight per unit (excl. packaging) | 1200 g |
| 安装方式 | DIN导轨 |
| Housing material | 金属 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | Input: M12-S | Output: 2x 7/8” 5pin |
| 转换效率，典型值 | 95.8 % |
| 转换效率，典型值 | 95.6 % |
| 功率损耗，典型值 | 22 W , 23 W |
| MTBF SN 29500 @ 40 °C (h) | 233000 h |
