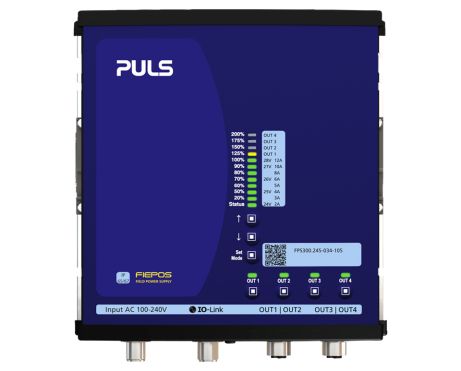

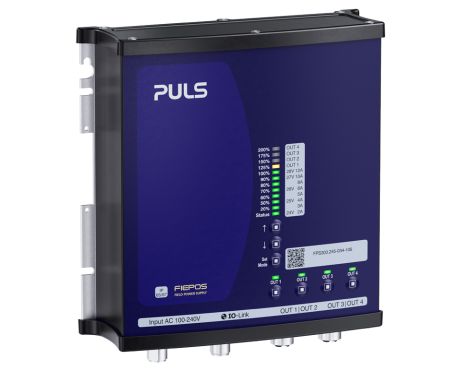

FPS300.245-034-105
1-phase IP54, IP65 and IP67 power supply
24 V, 15 A IO-Link | Input: M12-S | Output: 2x M12-L
数据表
24 V, 15 A IO-Link | Input: M12-S | Output: 2x M12-L
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 15 - 12.9 A | |
| 360 W | |
| 输入 | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (± 20 %) | |
| 尺寸（宽x高x深） | 181 x 183 x 59 mm |
| 重量 | 1200 g |
输入数据
| AC输入电压 | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC输入电压 | DC 110 V - 300 V (± 20 %) |
| 功率因数 | 0.97 |
| 输入浪涌电流抑制 | NTC |
| 输入浪涌电流 | 2.6 A / 6 A |
| 外部输入保险丝推荐 | B-6 A / C-6 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 15 - 12.9 A |
| 输出电流 | 12.9 A 当 28 V |
| 15 A 当 24 V | |
| 输出功率 | 360 W |
| 功率储备 | 600 W (up to 5s) |
| 降额 | 6 W/°C 为 +45 to +55 °C |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 181 mm x 183 mm x 59 mm |
|---|---|
| Weight per unit (excl. packaging) | 1200 g |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | Input: M12-S | Output: M12-L |
| 转换效率，典型值 | 95.7 % |
| 功率损耗，典型值 | 13.5 W |
| MTBF SN 29500 @ 40 °C (h) | 384000 h |
| DC-OK信号 | 有 |
