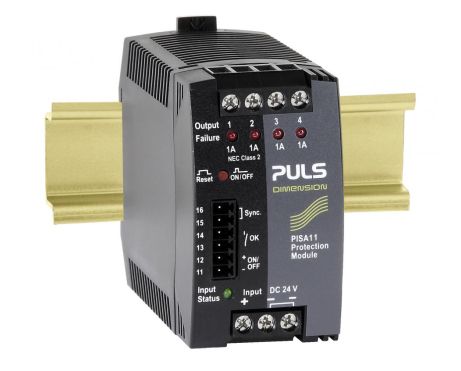

PISA11.401
24 V, 4 A 4-通道;输出:4x 1A
DC 输出 | DC 24 V |
---|---|
1 A , 1 A , 1 A , 1 A | |
输入 | DC 18 V - 30 V |
尺寸(宽x高x深) | 45 x 75 x 91 mm |
重量 | 120 g |
输入数据
DC输入电压 | DC 18 V - 30 V |
---|---|
空载时的DC输入电流 典型值 | 43 mA |
启动输出所需的输入电压 典型值 | 21.4 Vdc |
输入电压防护等级 最小/最大 | 21 - 21.8 Vdc |
输出数据
调压范围 | 24 - 28 V |
---|---|
输出电流 | 1 A , 1 A , 1 A , 1 A |
输出电流(所有输出总和) | 4 A |
输出电流限制 最小/最大 | 9 / 12.7 A |
输出端启动延迟 | 270 ms |
电路时的关断时间 典型值 | 110 ms |
概述
尺寸(宽x高x深) | 45 mm x 75 mm x 91 mm |
---|---|
Weight per unit (excl. packaging) | 120 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 螺丝式接线端子 |
空载损耗,典型值 | 1.0 W |
MTBF SN 29500 @ 40 °C (h) | 2347000 h |
