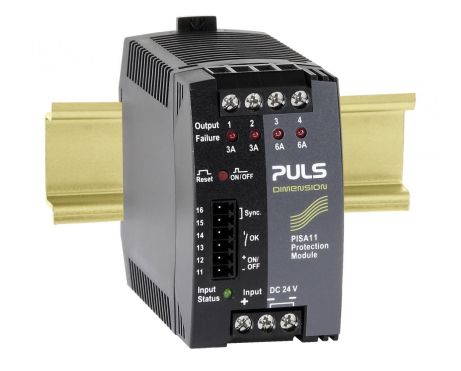

24V, 18A
4-通道保护模块;输出:2x3A 和 2x6A
DC 输出 DC 24V
3A , 3A , 6A , 6A
输入 DC 18V - 30V
体积 45 x 75 x 91mm
重量 120g
产品状态: 常备库存


DC输入电压 DC 18V - 30V
空载时的DC输入电流 典型值 43mA
启动输出所需的输入电压 典型值 21.4Vdc
输出端启动延迟 270ms
输入电压防护等级 最小/最大 21 - 21.8Vdc


调压范围 24 - 28V
输出电流 3A , 3A , 6A , 6A
输出电流(全部4路输出) 18A
输出电流限制 最小/最大 20.5 / 30A
电路时的关断时间 典型值 8ms


体积 45mm x 75mm x 91mm
每台的重量(净重) 120g
工作温度范围 -25°C 至 70°C
安装方式 DIN导轨
功率损耗,典型值 1.9W
空载损耗,典型值 1.0W
平均无故障时间 SN 29500 @ 40°C (h) 2095000h
连接端子类型 螺丝式接线端子
