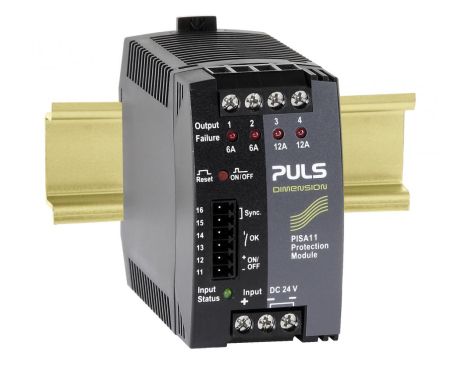

24V, 20A 4 通道；输出：2x 6A 和 2x 12A
|DC 输出||DC 24V|
|6A , 6A , 12A , 12A|
|输入||DC 18V - 30V|
|尺寸（宽x高x深）||45 x 75 x 91mm|
|DC输入电压||DC 18V - 30V|
|输入电压防护等级 最小/最大||21 - 21.8Vdc|
|调压范围||24 - 28V|
|输出电流||6A , 6A , 12A , 12A|
|输出电流限制 最小/最大||20.5 / 30A|
|尺寸（宽x高x深）||45mm x 75mm x 91mm|
|Weight per unit (excl. packaging)||120g|
|工作温度范围||-25°C 至 70°C|
|平均无故障时间 SN 29500 @ 40°C (h)||1373000h|
