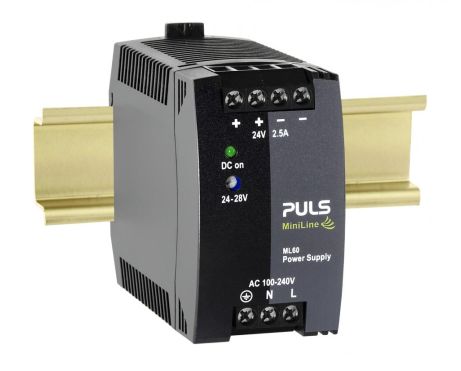

24V, 2.5A 工作在-40°C
|DC 输出||24 - 28Vdc|
|2.5 - 2.1A|
|输入||AC 100 - 240V (-15%/+10%)|
|DC 110V - 300V (-20%/+25%)|
|尺寸（宽x高x深）||45 x 75 x 91mm|
|AC输入电压||AC 100 - 240V (-15%/+10%)|
|DC输入电压||DC 110V - 300V (-20%/+25%)|
|外部输入保险丝推荐||B-6A / C-3A|
|调压范围||24 - 28V|
|输出电流范围||2.5 - 2.1A|
|输出电流||2.1A 当 28V|
|2.5A 当 24V|
|降额||1.5W/°C 为 >+60°C|
|尺寸（宽x高x深）||45mm x 75mm x 91mm|
|Weight per unit (excl. packaging)||250g|
|工作温度范围||-40°C 至 70°C|
|功率损耗，典型值||7.8W , 6,4W|
|平均无故障时间 SN 29500 @ 40°C (h)||1866000h|
