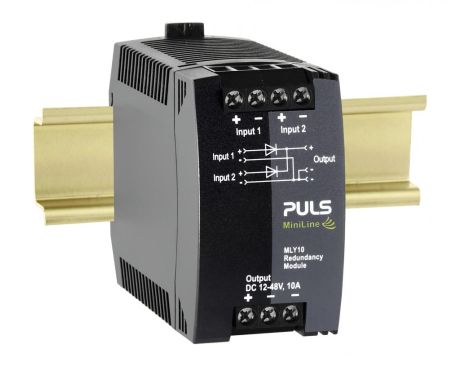

MLY10.241
双路输入二极管冗余模块
24 V, 10 A 2路5A输入
数据表
24 V, 10 A 2路5A输入
| DC 输出 | 12 - 48 Vdc |
|---|---|
| 10 A | |
| 输入 | DC 12 V - 48 V (± 25 %) |
| 尺寸（宽x高x深） | 45 x 75 x 91 mm |
| 重量 | 140 g |
输入数据
| 输入电流 | 2 x 5 A |
|---|---|
| 每路输入的额定电流 | 5 A |
| DC输入电压 | DC 12 V - 48 V (± 25 %) |
| 电压跌落 | 800 mV |
输出数据
| 输出电流范围 | 10 A |
|---|---|
| 输出电流 | 10 A |
| 短路时的输出电流，最大值 | 16 A |
| 降额 | 0.25 W/°C 为 >+60 °C |
概述
| 尺寸（宽x高x深） | 45 mm x 75 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 140 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -40 °C 至 70 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 功率损耗，典型值 | 4.0 W |
| 空载损耗，典型值 | 0 W |
| MTBF SN 29500 @ 40 °C (h) | 85000000 h |
