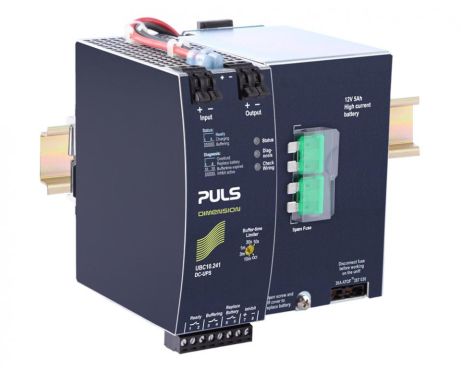

UBC10.241
集成电池的DC-UPS
24 V, 10 A 包含电池
数据表
24 V, 10 A 包含电池
| DC 输出 | DC 24 V |
|---|---|
| 10 A | |
| 输入 | DC 24 V |
| 尺寸（宽x高x深） | 123 x 124 x 119 mm |
| 重量 | 2850 g |
输入数据
| DC输入电压 | DC 24 V |
|---|---|
| 内部电流消耗（包括充电电流 | 1.3 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 22.5 Vds | |
| 输出电流 | 15 A |
| 10 A |
缓冲
| 储能元件 | 内置铅酸蓄电池 |
|---|---|
| 允许电池的尺寸 | 12 V, 5A h |
| 温度跟踪充电终止电压 | automatically with temp. sensor |
概述
| 尺寸（宽x高x深） | 123 mm x 124 mm x 119 mm |
|---|---|
| Weight per unit (excl. packaging) | 2850 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | 0 °C 至 40 °C |
| 连接端子类型 | 弹压式接线端子 |
| MTBF SN 29500 @ 40 °C (h) | 886000 h |
