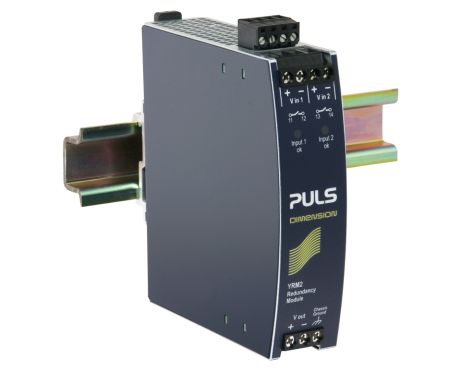

YRM2.DIODE
双路输入二极管冗余模块
24 V, 20 A 2路10A输入, 带信号接触器
数据表
24 V, 20 A 2路10A输入, 带信号接触器
| DC 输出 | 24 - 48 Vdc |
|---|---|
| 20 A | |
| 输入 | DC 24 V - 48 V |
| 尺寸（宽x高x深） | 32 x 124 x 117 mm |
| 重量 | 350 g |
输入数据
| 输入电流 | 2 x 10 A |
|---|---|
| 每路输入的额定电流 | 10 A |
| DC输入电压 | DC 24 V - 48 V |
| 电压跌落 | 800 mV |
输出数据
| 输出电流范围 | 20 A |
|---|---|
| 输出电流 | 20 A |
| 短路时的输出电流，最大值 | 25 A |
| 降额 | 0.5 W/°C 为 >+60 °C |
概述
| 尺寸（宽x高x深） | 32 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 350 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -40 °C 至 70 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 功率损耗，典型值 | 9.0 W |
| 空载损耗，典型值 | 1 W |
| MTBF SN 29500 @ 40 °C (h) | 9100000 h |
