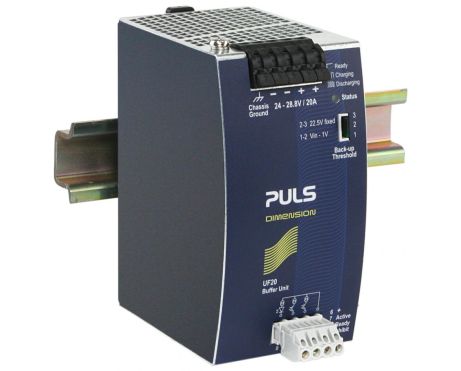

UF20.241
缓冲模块
24 V, 20 A 电解电容缓冲模块 典型值：310ms 当20A时
数据表
24 V, 20 A 电解电容缓冲模块 典型值：310ms 当20A时
| DC 输出 | DC 24 V |
|---|---|
| 20 A | |
| 输入 | DC 24 V - 24 V (-7 %/+20 %) |
| 尺寸（宽x高x深） | 64 x 124 x 102 mm |
| 重量 | 740 g |
输入数据
| DC输入电压 | DC 24 V - 24 V (-7 %/+20 %) |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 22.5 Vds | |
| 输出电流 | 24 A |
| 20 A |
缓冲
| 储能元件 | 电解电容器 |
|---|
概述
| 尺寸（宽x高x深） | 64 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 740 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 弹压式接线端子 |
| MTBF SN 29500 @ 40 °C (h) | 2327000 h |
