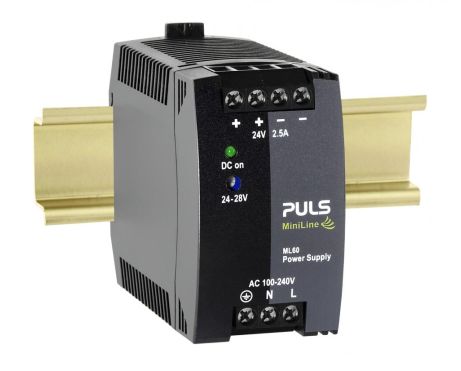

ML60.241

单相系统的DIN导轨电源
24V, 2.5A
数据表
DC 输出 24 - 28Vdc
2.5 - 2.1A
60W
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
尺寸(宽x高x深) 45 x 75 x 91mm
重量 250g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 300V (-20%/+25%)
功率因数 0.5
输入浪涌电流抑制 NTC
输入浪涌电流 16A / 32A
外部输入保险丝推荐 B-10A / C-6A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 2.5 - 2.1A
输出电流 2.1A 当 28V
2.5A 当 24V
输出功率 60W
降额 1.5W/°C 为 >+60°C
电压纹波与噪声 最大值 50mVpp

概述

尺寸(宽x高x深) 45mm x 75mm x 91mm
每台的重量(净重) 250g
安装方式 DIN导轨
转换效率,典型值 89.7%
功率损耗,典型值 6.9W
平均无故障时间 SN 29500 @ 40°C (h) 1916000h
连接端子类型 螺丝式接线端子
