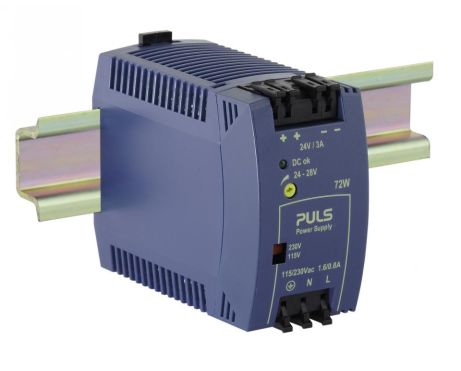

24 V, 3 A NEC Class 2
|DC 输出||24 - 28 Vdc|
|3 - 2.6 A|
|输入||AC 100 - 120 / 220 - 240 V (-15 %/+10 %)|
|DC 290 V (-25 %/+30 %)|
|尺寸（宽x高x深）||45 x 75 x 91 mm|
|AC输入电压||AC 100 - 120 / 220 - 240 V (-15 %/+10 %)|
|DC输入电压||DC 290 V (-25 %/+30 %)|
|输入浪涌电流||26 A / 30 A|
|外部输入保险丝推荐||B-10 A / C-6 A|
|调压范围||24 - 28 V|
|输出电流范围||3 - 2.6 A|
|输出电流||2.6 A 当 28 V|
|3 A 当 24 V|
|降额||1.8 W/°C 为 >+60 °C|
|电压纹波与噪声 最大值||50 mVpp|
|尺寸（宽x高x深）||45 mm x 75 mm x 91 mm|
|Weight per unit (excl. packaging)||260 g|
|MTBF SN 29500 @ 40 °C (h)||600000 h|
