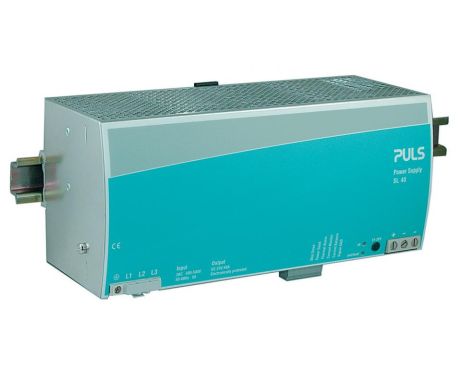

SL40.301
三相系统的DIN导轨电源
24 V, 40 A 包含多种信号
数据表
24 V, 40 A 包含多种信号
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 40 - 34.3 A | |
| 960 W | |
| 输入 | AC 400 - 500 V |
| 尺寸（宽x高x深） | 275 x 124 x 117 mm |
| 重量 | 3300 g |
输入数据
| AC输入电压 | AC 400 - 500 V |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 40 - 34.3 A |
| 输出电流 | 34.3 A 当 28 V |
| 40 A 当 24 V | |
| 输出功率 | 960 W |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 275 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 3300 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 螺丝式接线端子 |
