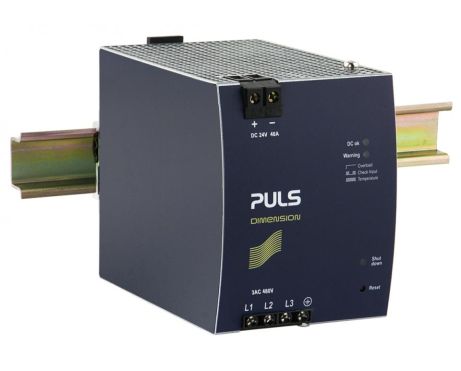

XT40.242

三相系统的DIN导轨电源
24V, 40A
半调节
数据表
DC 输出 24Vdc
40A
960W
输入 AC 480V (± 15%)
尺寸(宽x高x深) 96 x 124 x 159mm
重量 1400g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 480V (± 15%)
谐波校正 主动式
功率因数 0.93
输入浪涌电流抑制 主动式
输入浪涌电流 2A
外部输入保险丝推荐 B-6A / C-3A

输出数据

额定电压 24Vdc
调压范围 24V
输出电流范围 40A
输出电流 40A 当 24V
输出功率 960W
功率储备 25% 功率储备
降额 24W/°C 为 >+60°C
电压纹波与噪声 最大值 1500mVpp

概述

尺寸(宽x高x深) 96mm x 124mm x 159mm
每台的重量(净重) 1400g
工作温度范围 -25°C 至 70°C
安装方式 DIN导轨
转换效率,典型值 95.5%
功率损耗,典型值 45.2W
平均无故障时间 SN 29500 @ 40°C (h) 529000h
连接端子类型 螺丝式接线端子
