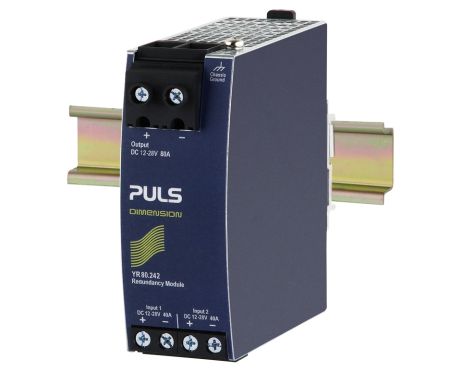

YR80.242

MOSFET冗余模块
24V, 80A
2路40A输入
数据表
DC 输出 12 - 28Vdc
80A
输入 DC 12V - 28V
尺寸(宽x高x深) 46 x 124 x 127mm
重量 370g
对比
产品状态: 常备库存

输入数据

输入电流 2 x 40A
每路输入的额定电流 40A
DC输入电压 DC 12V - 28V
电压跌落 65mV

输出数据

输出电流范围 80A
输出电流 80A
短路时的输出电流,最大值 44A
降额 2W/°C 为 >+60°C

概述

尺寸(宽x高x深) 46mm x 124mm x 127mm
每台的重量(净重) 370g
工作温度范围 -40°C 至 70°C
安装方式 DIN导轨
功率损耗,典型值 2.9W
空载损耗,典型值 0.2W
平均无故障时间 SN 29500 @ 40°C (h) 2500000h
连接端子类型 螺丝式接线端子
