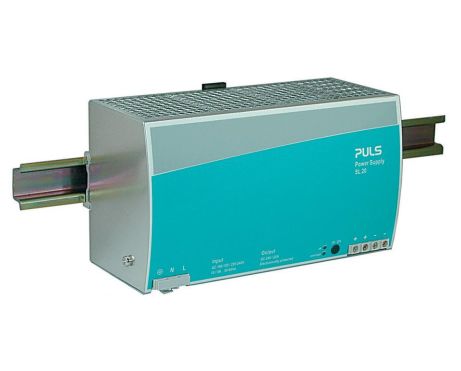

SL20.110
单相系统的DIN导轨电源
24 V, 20 A
数据表
24 V, 20 A
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 20 - 17.1 A | |
| 480 W | |
| 输入 | AC 100 - 120 / 220 - 240 V |
| 尺寸（宽x高x深） | 220 x 124 x 102 mm |
| 重量 | 1800 g |
输入数据
| AC输入电压 | AC 100 - 120 / 220 - 240 V |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 20 - 17.1 A |
| 输出电流 | 17.1 A 当 28 V |
| 20 A 当 24 V | |
| 输出功率 | 480 W |
概述
| 尺寸（宽x高x深） | 220 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 1800 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 螺丝式接线端子 |
