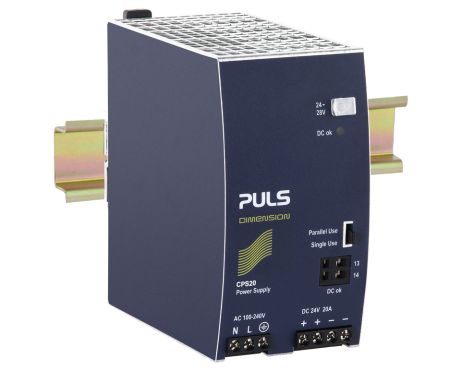

CPS20.241

单相系统的DIN导轨电源
24V, 20A
数据表
DC 输出 24 - 28Vdc
20 - 17.1A
480W
输入 AC 100 - 240V (-15%/+10%)
尺寸(宽x高x深) 65 x 124 x 127mm
重量 1000g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (-15%/+10%)
谐波校正 主动式
功率因数 0.95
输入浪涌电流抑制 主动式
输入浪涌电流 9A / 7A
外部输入保险丝推荐 B-10A / C-10A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 20 - 17.1A
输出电流 17.1A 当 28V
20A 当 24V
输出功率 480W
功率储备 20% 额外功率
降额 12W/°C 为 >+60°C
电压纹波与噪声 最大值 50mVpp

概述

尺寸(宽x高x深) 65mm x 124mm x 127mm
每台的重量(净重) 1000g
工作温度范围 -25°C 至 70°C
安装方式 DIN导轨
转换效率,典型值 94%
功率损耗,典型值 37.8W , 30.6W
平均无故障时间 SN 29500 @ 40°C (h) 537000h
连接端子类型 螺丝式接线端子
DC-OK信号
