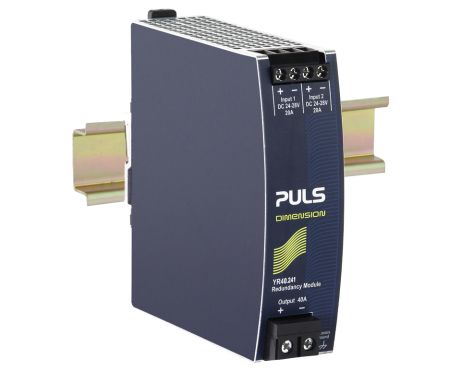

YR40.241
MOSFET冗余模块
24 V, 40 A 2路20A输入，1路40A输出
数据表
24 V, 40 A 2路20A输入，1路40A输出
| DC 输出 | 12 - 28 Vdc |
|---|---|
| 输入 | DC 12 V - 28 V (± 30 %) |
| 尺寸（宽x高x深） | 36 x 124 x 127 mm |
| 重量 | 340 g |
输入数据
| 输入电流 | 2 x 20 A |
|---|---|
| 每路输入的额定电流 | 20 A |
| DC输入电压 | DC 12 V - 28 V (± 30 %) |
| 电压跌落 | 72 mV |
输出数据
| 输出电流 | 40 A |
|---|---|
| 短路时的输出电流，最大值 | 65 A |
概述
| 尺寸（宽x高x深） | 36 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 340 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -40 °C 至 70 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 功率损耗，典型值 | 2.2 W |
| 空载损耗，典型值 | 0.7 W |
| MTBF SN 29500 @ 40 °C (h) | 2700000 h |
