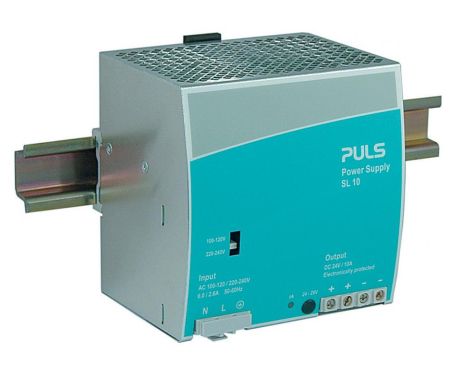

SL10.105
单相系统的DIN导轨电源
24 V, 10 A 带被动式PFC电感
数据表
24 V, 10 A 带被动式PFC电感
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 10 - 8.6 A | |
| 240 W | |
| 输入 | AC 100 - 120 / 210 - 240 V |
| 尺寸（宽x高x深） | 120 x 124 x 102 mm |
| 重量 | 1195 g |
输入数据
| AC输入电压 | AC 100 - 120 / 210 - 240 V |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 10 - 8.6 A |
| 输出电流 | 8.6 A 当 28 V |
| 10 A 当 24 V | |
| 输出功率 | 240 W |
| 电压纹波与噪声 最大值 | 30 mVpp |
概述
| 尺寸（宽x高x深） | 120 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 1195 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 螺丝式接线端子 |
