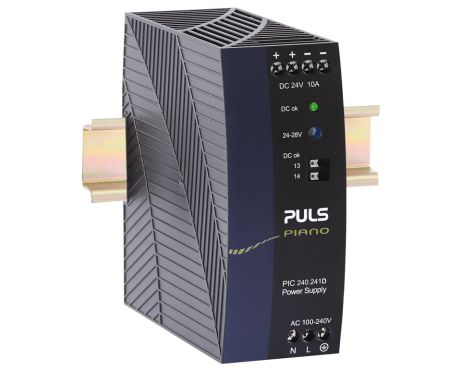

PIC240.241D

单相系统的DIN导轨电源
24V, 10A
DC-OK信号继电器触点
数据表
DC 输出 24 - 28Vdc
10 - 8.6A
240W
输入 AC 100 - 240V (± 10%)
体积 49 x 124 x 124mm
重量 540g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (± 10%)
谐波校正 主动式
功率因数 0.93
输入浪涌电流抑制 主动式
输入浪涌电流 14A / 26A
外部输入保险丝推荐 B-10A / C-6A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 10 - 8.6A
输出电流 8.6A 当 28V
10A 当 24V
输出功率 240W
电压纹波与噪声 最大值 100mVpp

概述

体积 49mm x 124mm x 124mm
每台的重量(净重) 540g
工作温度范围 -25°C 至 70°C
降额 6W/°C 当 >+55°C
安装方式 DIN导轨
转换效率,典型值 95.2%
功率损耗,典型值 12.1W
连接端子类型 螺丝式接线端子
DC-OK信号
