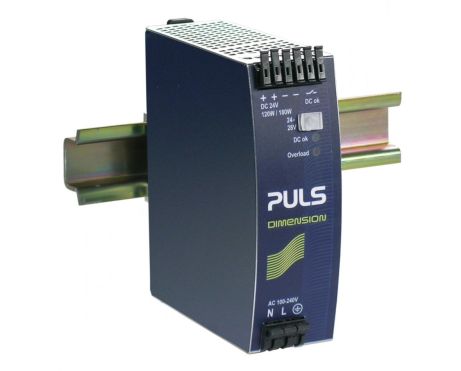

QS5.241

单相系统的DIN导轨电源
24V, 5A
数据表
DC 输出 24 - 28Vdc
5 - 4.5A
120W
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 300V (± 20%)
体积 40 x 124 x 117mm
重量 620g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 300V (± 20%)
谐波校正 主动式
功率因数 0.91
输入浪涌电流抑制 主动式
输入浪涌电流 9A / 11A
外部输入保险丝推荐 B-6A / C-3A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 5 - 4.5A
输出电流 4.5A 当 28V
5A 当 24V
输出功率 120W
功率储备 50% 峰值功率
电压纹波与噪声 最大值 50mVpp

概述

体积 40mm x 124mm x 117mm
每台的重量(净重) 620g
工作温度范围 -25°C 至 70°C
降额 3W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 92.7%
功率损耗,典型值 9.4W
平均无故障时间 SN 29500 @ 40°C (h) 831000h
连接端子类型 弹压式接线端子
DC-OK信号
