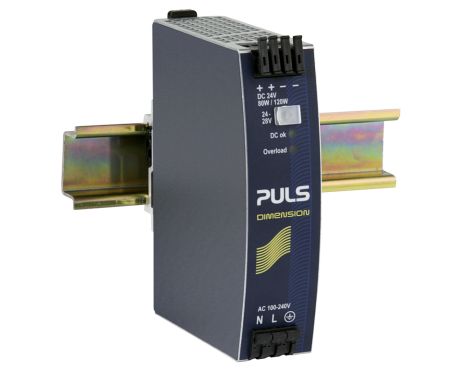

QS3.241

单相系统的DIN导轨电源
24V, 3.4A
数据表
DC 输出 24 - 28Vdc
3.4 - 3A
80W
输入 AC 100 - 240V (± 15%)
DC 110V - 300V (-20%/+25%)
尺寸(宽x高x深) 32 x 124 x 102mm
重量 440g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (± 15%)
DC输入电压 DC 110V - 300V (-20%/+25%)
功率因数 0.47
输入浪涌电流抑制 主动式
输入浪涌电流 5A / 10A
外部输入保险丝推荐 B-6A / C-6A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 3.4 - 3A
输出电流 3A 当 28V
3.4A 当 24V
输出功率 80W
功率储备 50% 峰值功率
降额 2W/°C 为 >+60°C
电压纹波与噪声 最大值 50mVpp

概述

尺寸(宽x高x深) 32mm x 124mm x 102mm
每台的重量(净重) 440g
工作温度范围 -25°C 至 70°C
安装方式 DIN导轨
转换效率,典型值 90%
功率损耗,典型值 9.1W
平均无故障时间 SN 29500 @ 40°C (h) 1451000h
连接端子类型 弹压式接线端子
