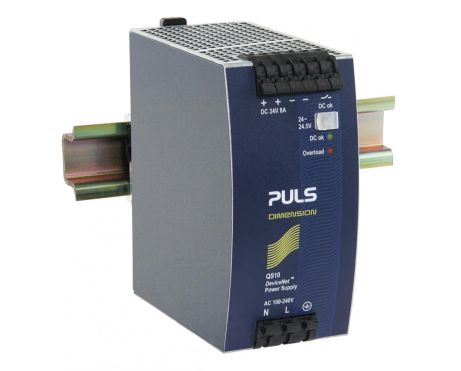

24V, 8A DeviceNet认证
|DC 输出||24 - 24.5Vdc|
|8 - 8A|
|输入||AC 100 - 240V (± 15%)|
|DC 110V - 150V (-20%/+25%)|
|尺寸（宽x高x深）||60 x 124 x 117mm|
|AC输入电压||AC 100 - 240V (± 15%)|
|DC输入电压||DC 110V - 150V (-20%/+25%)|
|输入浪涌电流||4A / 7A|
|外部输入保险丝推荐||B-6A / C-4A|
|调压范围||24 - 24.5V|
|输出电流范围||8 - 8A|
|输出电流||8A 当 24.5V|
|8A 当 24V|
|降额||5W/°C 为 >+60°C|
|尺寸（宽x高x深）||60mm x 124mm x 117mm|
|Weight per unit (excl. packaging)||900g|
|工作温度范围||-25°C 至 70°C|
|平均无故障时间 SN 29500 @ 40°C (h)||581000h|
