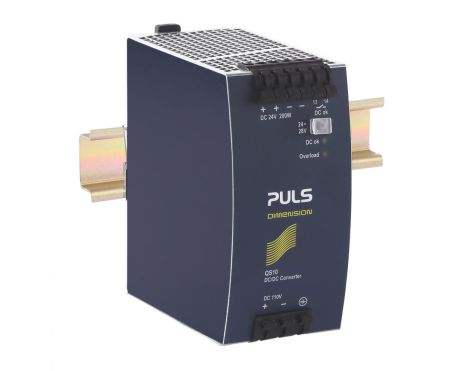

QS10.241-60
24 V, 8.3 A 轨道交通应用
DC 输出 | 24 - 28 Vdc |
---|---|
8.3 - 7.1 A | |
200 W | |
输入 | DC 110 V (-30 %/+40 %) |
尺寸(宽x高x深) | 60 x 124 x 117 mm |
重量 | 920 g |
输入数据
DC输入电压 | DC 110 V (-30 %/+40 %) |
---|
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 8.3 - 7.1 A |
输出电流 | 7.1 A 当 28 V |
8.3 A 当 24 V | |
输出功率 | 200 W |
功率储备 | 50 % 额外功率可持续4s (典型值) |
电压纹波与噪声 最大值 | 50 mVpp |
概述
尺寸(宽x高x深) | 60 mm x 124 mm x 117 mm |
---|---|
Weight per unit (excl. packaging) | 920 g |
安装方式 | DIN导轨 |
工作温度范围 | -40 °C 至 70 °C |
连接端子类型 | 弹压式接线端子 |
转换效率,典型值 | 93 % |
功率损耗,典型值 | 15.0 W |
MTBF SN 29500 @ 40 °C (h) | 688000 h |
