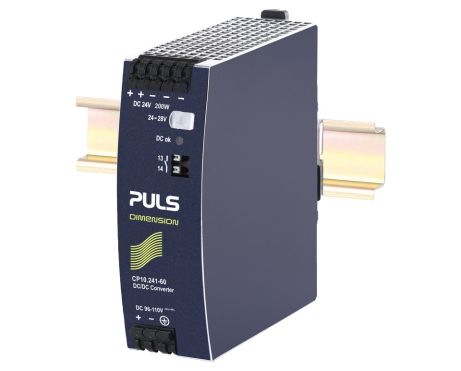

CP10.241-60
直流/直流转换器
24 V, 8.3 A 轨道交通应用
数据表
24 V, 8.3 A 轨道交通应用
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 8.3 - 7.1 A | |
| 200 W | |
| 输入 | DC 96 V - 110 V (-30 %/+40 %) |
| 尺寸（宽x高x深） | 39 x 124 x 117 mm |
| 重量 | 620 g |
输入数据
| DC输入电压 | DC 96 V - 110 V (-30 %/+40 %) |
|---|---|
| 输入浪涌电流抑制 | 主动式 |
| 输入浪涌电流 | 2.5 A |
| 外部输入保险丝推荐 | B-6 A / C-4 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 8.3 - 7.1 A |
| 输出电流 | 7.1 A 当 28 V |
| 8.3 A 当 24 V | |
| 输出功率 | 200 W |
| 功率储备 | 20 % |
| 降额 | 6 W/°C 为 >+60 °C |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 39 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 620 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -40 °C 至 70 °C |
| 连接端子类型 | 弹压式接线端子 |
| 转换效率，典型值 | 94.5 % |
| 功率损耗，典型值 | 11.6 W |
| MTBF SN 29500 @ 40 °C (h) | 775000 h |
| DC-OK信号 | 有 |
