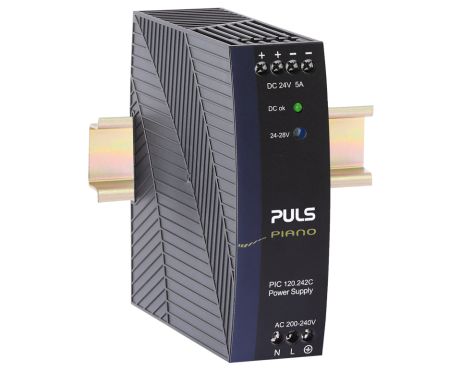

24 V, 5 A
|DC 输出||24 - 28 Vdc|
|5 - 4.3 A|
|输入||AC 200 - 240 V (± 10 %)|
|尺寸（宽x高x深）||39 x 124 x 124 mm|
|AC输入电压||AC 200 - 240 V (± 10 %)|
|外部输入保险丝推荐||B-10 A / C-6 A|
|调压范围||24 - 28 V|
|输出电流范围||5 - 4.3 A|
|输出电流||4.3 A 当 28 V|
|5 A 当 24 V|
|降额||3 W/°C 为 +55 to +70 °C|
|电压纹波与噪声 最大值||100 mVpp|
|尺寸（宽x高x深）||39 mm x 124 mm x 124 mm|
|Weight per unit (excl. packaging)||350 g|
|MTBF SN 29500 @ 40 °C (h)||1720000 h|
