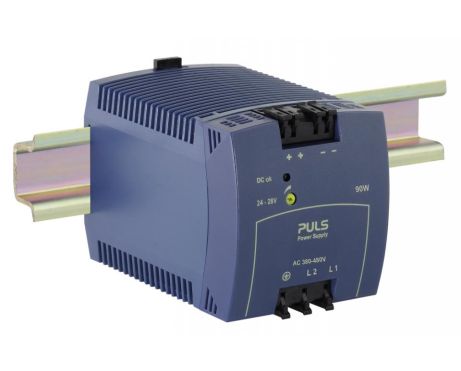

24 V, 3.8 A NEC Class 2
|DC 输出||24 - 28 Vdc|
|3.8 - 3.2 A|
|输入||AC 380 - 480 V (± 15 %)|
|尺寸（宽x高x深）||73 x 75 x 103 mm|
|AC输入电压||AC 380 - 480 V (± 15 %)|
|输入浪涌电流||30 A / 36 A|
|外部输入保险丝推荐||B-10 A / C-6 A|
|调压范围||24 - 28 V|
|输出电流范围||3.8 - 3.2 A|
|输出电流||3.2 A 当 28 V|
|3.8 A 当 24 V|
|降额||2 W/°C 为 >+60 °C|
|电压纹波与噪声 最大值||50 mVpp|
|尺寸（宽x高x深）||73 mm x 75 mm x 103 mm|
|Weight per unit (excl. packaging)||360 g|
|MTBF SN 29500 @ 40 °C (h)||1594000 h|
