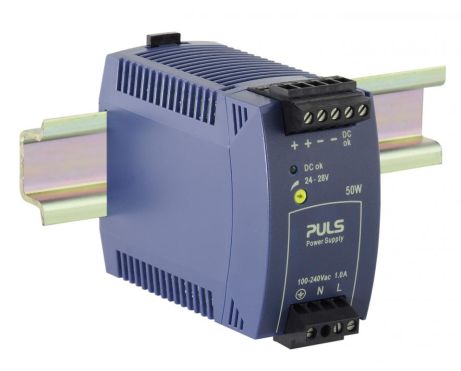

ML50.111
24 V, 2.1 A 带插头连接器
DC 输出 | 24 - 28 Vdc |
---|---|
2.1 - 1.8 A | |
50 W | |
输入 | AC 100 - 240 V |
DC 110 V - 300 V (-20 %/+25 %) | |
尺寸(宽x高x深) | 45 x 75 x 98 mm |
重量 | 240 g |
输入数据
AC输入电压 | AC 100 - 240 V |
---|---|
DC输入电压 | DC 110 V - 300 V (-20 %/+25 %) |
功率因数 | 0.56/ 0.52 |
输入浪涌电流抑制 | NTC |
输入浪涌电流 | 17 A / 35 A |
外部输入保险丝推荐 | B-10 A / C-6 A |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 2.1 - 1.8 A |
输出电流 | 1.8 A 当 28 V |
2.1 A 当 24 V | |
输出功率 | 50 W |
降额 | 1.3 W/°C 为 >+60 °C |
电压纹波与噪声 最大值 | 50 mVpp |
概述
尺寸(宽x高x深) | 45 mm x 75 mm x 98 mm |
---|---|
Weight per unit (excl. packaging) | 240 g |
安装方式 | DIN导轨 |
连接端子类型 | 插头 |
转换效率,典型值 | 88.4 % |
转换效率,典型值 | 89 % |
MTBF SN 29500 @ 40 °C (h) | 2613000 h |
DC-OK信号 | 有 |
