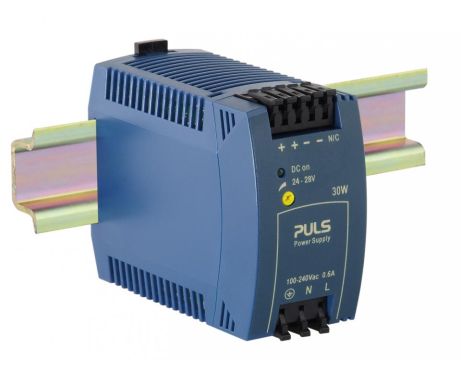

24 V, 1.3 A
|DC 输出||24 - 28 Vdc|
|1.3 - 1.1 A|
|输入||AC 100 - 240 V (-15 %/+10 %)|
|DC 110 V - 300 V (-20 %/+25 %)|
|尺寸（宽x高x深）||45 x 75 x 91 mm|
|AC输入电压||AC 100 - 240 V (-15 %/+10 %)|
|DC输入电压||DC 110 V - 300 V (-20 %/+25 %)|
|输入浪涌电流||17 A / 35 A|
|外部输入保险丝推荐||B-10 A / C-6 A|
|调压范围||24 - 28 V|
|输出电流范围||1.3 - 1.1 A|
|输出电流||1.1 A 当 28 V|
|1.3 A 当 24 V|
|降额||0.8 W/°C 为 >+60 °C|
|电压纹波与噪声 最大值||50 mVpp|
|尺寸（宽x高x深）||45 mm x 75 mm x 91 mm|
|Weight per unit (excl. packaging)||230 g|
|MTBF SN 29500 @ 40 °C (h)||650000 h|
