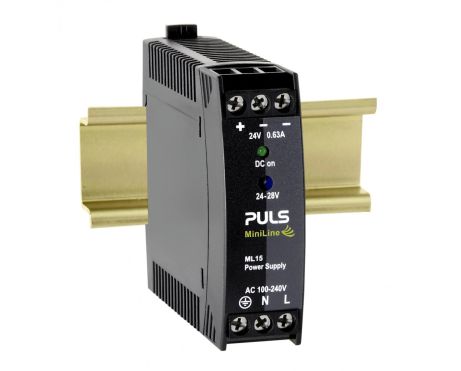

ML15.241
单相系统的DIN导轨电源
24 V, 0.6 A
数据表
24 V, 0.6 A
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 0.6 - 0.5 A | |
| 15 W | |
| 输入 | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (-20 %/+25 %) | |
| 尺寸（宽x高x深） | 23 x 75 x 91 mm |
| 重量 | 130 g |
输入数据
| AC输入电压 | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC输入电压 | DC 110 V - 300 V (-20 %/+25 %) |
| 功率因数 | 0.44 |
| 输入浪涌电流抑制 | NTC |
| 输入浪涌电流 | 16 A / 31 A |
| 外部输入保险丝推荐 | B-6 A / C-3 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 0.6 - 0.5 A |
| 输出电流 | 0.5 A 当 28 V |
| 0.6 A 当 24 V | |
| 输出功率 | 15 W |
| 降额 | 0.4 W/°C 为 >+60 °C |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 23 mm x 75 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 130 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 螺丝式接线端子 |
| 转换效率，典型值 | 85.1 % |
| 功率损耗，典型值 | 2.7 W |
| MTBF SN 29500 @ 40 °C (h) | 4369000 h |
