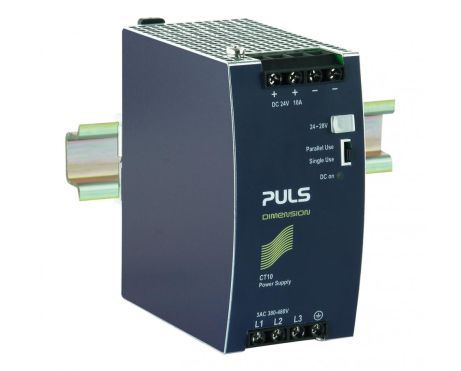

CT10.241

三相系统的DIN导轨电源
24V, 10A
数据表
DC 输出 24 - 28Vdc
10 - 8.6A
240W
输入 AC 380 - 480V (-15%/+20%)
体积 62 x 124 x 117mm
重量 750g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 380 - 480V (-15%/+20%)
谐波校正 PFC
功率因数 0.53
输入浪涌电流抑制 主动式
输入浪涌电流 4A / 4A
外部输入保险丝推荐 B-6A / C-3A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 10 - 8.6A
输出电流 8.6A 当 28V
10A 当 24V
输出功率 240W
功率储备 20% 额外功率
电压纹波与噪声 最大值 50mVpp

概述

体积 62mm x 124mm x 117mm
每台的重量(净重) 750g
工作温度范围 -25°C 至 70°C
降额 6W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 92.8%
功率损耗,典型值 18.6W
平均无故障时间 SN 29500 @ 40°C (h) 975000h
连接端子类型 螺丝式接线端子
