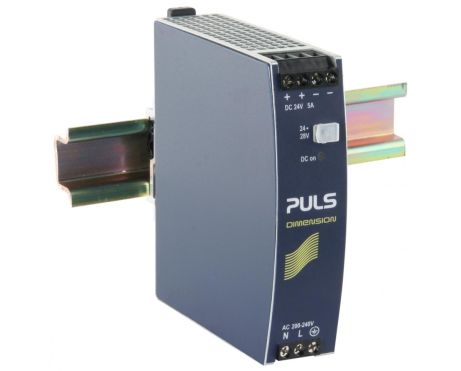

CS5.244

单相系统的DIN导轨电源
24V, 5A
数据表
DC 输出 24 - 28Vdc
5 - 4.3A
120W
输入 AC 200 - 240V (± 10%)
体积 32 x 124 x 117mm
重量 500g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 200 - 240V (± 10%)
功率因数 0.5
输入浪涌电流抑制 NTC
输入浪涌电流 30A
外部输入保险丝推荐 B-16A / C-10A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 5 - 4.3A
输出电流 4.3A 当 28V
5A 当 24V
输出功率 120W
功率储备 20% 额外功率
电压纹波与噪声 最大值 50mVpp

概述

体积 32mm x 124mm x 117mm
每台的重量(净重) 500g
降额 3W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 90.2%
功率损耗,典型值 13.2W
平均无故障时间 SN 29500 @ 40°C (h) 940000h
连接端子类型 螺丝式接线端子
