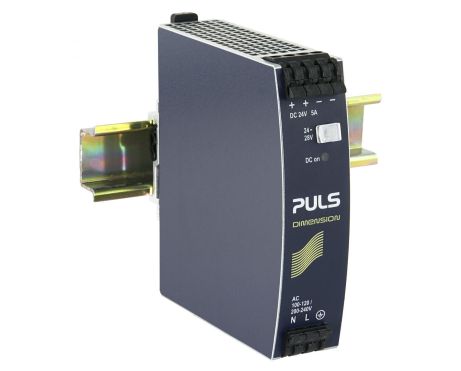

CS5.241-S1
24 V, 5 A 弹压式接线端子
DC 输出 | 24 - 28 Vdc |
---|---|
5 - 4.3 A | |
120 W | |
输入 | AC 100 - 120 / 200 - 240 V (± 10 %) |
尺寸(宽x高x深) | 32 x 124 x 117 mm |
重量 | 500 g |
输入数据
AC输入电压 | AC 100 - 120 / 200 - 240 V (± 10 %) |
---|---|
功率因数 | 0.47 |
输入浪涌电流抑制 | 主动式 |
输入浪涌电流 | 3 A / 3 A |
外部输入保险丝推荐 | B-10 A / C-6 A |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 5 - 4.3 A |
输出电流 | 4.3 A 当 28 V |
5 A 当 24 V | |
输出功率 | 120 W |
功率储备 | 20 % 额外功率 |
降额 | 3 W/°C 为 >+60 °C |
电压纹波与噪声 最大值 | 50 mVpp |
概述
尺寸(宽x高x深) | 32 mm x 124 mm x 117 mm |
---|---|
Weight per unit (excl. packaging) | 500 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 弹压式接线端子 |
转换效率,典型值 | 90.2 % |
功率损耗,典型值 | 13.2 W |
MTBF SN 29500 @ 40 °C (h) | 869000 h |
