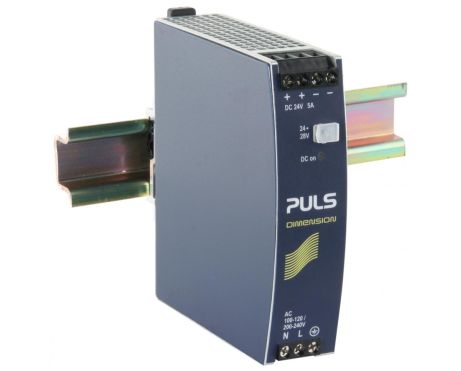

24V, 5A 保护面漆
|DC 输出||24 - 28Vdc|
|5 - 4.3A|
|输入||AC 100 - 120 / 200 - 240V (± 10%)|
|尺寸（宽x高x深）||32 x 124 x 117mm|
|AC输入电压||AC 100 - 120 / 200 - 240V (± 10%)|
|输入浪涌电流||3A / 3A|
|外部输入保险丝推荐||B-10A / C-6A|
|调压范围||24 - 28V|
|输出电流范围||5 - 4.3A|
|输出电流||4.3A 当 28V|
|5A 当 24V|
|降额||3W/°C 为 >+60°C|
|尺寸（宽x高x深）||32mm x 124mm x 117mm|
|Weight per unit (excl. packaging)||500g|
|工作温度范围||-25°C 至 70°C|
|平均无故障时间 SN 29500 @ 40°C (h)||869000h|
