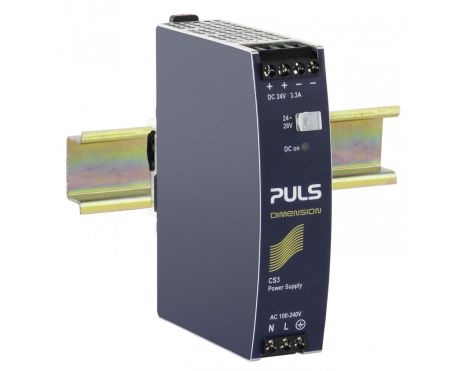

CS3.241
24 V, 3.3 A
DC 输出 | 24 - 28 Vdc |
---|---|
3.3 - 2.7 A | |
80 W | |
输入 | AC 100 - 240 V (± 10 %) |
DC 110 V - 300 V (-20 %/+25 %) | |
尺寸(宽x高x深) | 32 x 124 x 102 mm |
重量 | 430 g |
输入数据
AC输入电压 | AC 100 - 240 V (± 10 %) |
---|---|
DC输入电压 | DC 110 V - 300 V (-20 %/+25 %) |
功率因数 | 0.56 |
输入浪涌电流抑制 | NTC |
输入浪涌电流 | 23 A / 45 A |
外部输入保险丝推荐 | B-10 A / C-6 A |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 3.3 - 2.7 A |
输出电流 | 2.7 A 当 28 V |
3.3 A 当 24 V | |
输出功率 | 80 W |
降额 | 1.8 W/°C 为 >+60 °C |
电压纹波与噪声 最大值 | 50 mVpp |
概述
尺寸(宽x高x深) | 32 mm x 124 mm x 102 mm |
---|---|
Weight per unit (excl. packaging) | 430 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 螺丝式接线端子 |
转换效率,典型值 | 89.8 % |
功率损耗,典型值 | 9.1 W |
MTBF SN 29500 @ 40 °C (h) | 2243000 h |
