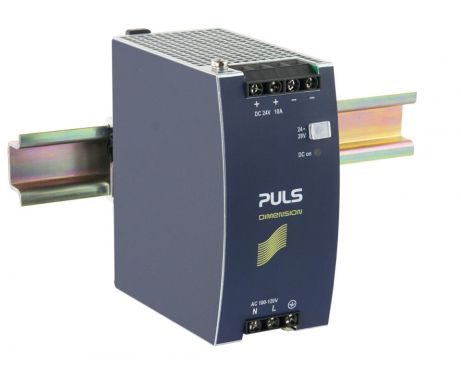

CS10.243

单相系统的DIN导轨电源
24V, 10A
数据表
DC 输出 24 - 28Vdc
10 - 8.6A
240W
输入 AC 100 - 120V (± 10%)
体积 60 x 124 x 117mm
重量 700g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 120V (± 10%)
功率因数 0.57
输入浪涌电流抑制 NTC
输入浪涌电流 85A
外部输入保险丝推荐 B-16A / C-10A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 10 - 8.6A
输出电流 8.6A 当 28V
10A 当 24V
输出功率 240W
功率储备 20% 额外功率
电压纹波与噪声 最大值 50mVpp

概述

体积 60mm x 124mm x 117mm
每台的重量(净重) 700g
工作温度范围 0°C 至 70°C
降额 6W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 91.3%
功率损耗,典型值 23.4W
平均无故障时间 SN 29500 @ 40°C (h) 710000h
连接端子类型 螺丝式接线端子
