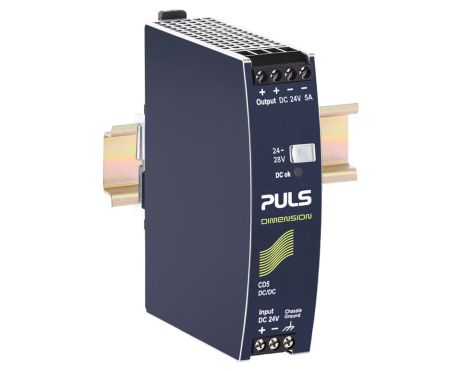

24 V, 5 A
|DC 输出||24 - 28 Vdc|
|5 - 4.3 A|
|输入||DC 24 V (-25 %/+35 %)|
|尺寸（宽x高x深）||32 x 124 x 102 mm|
|DC输入电压||DC 24 V (-25 %/+35 %)|
|调压范围||24 - 28 V|
|输出电流范围||5 - 4.3 A|
|输出电流||4.3 A 当 28 V|
|5 A 当 24 V|
|功率储备||20 % 额外功率|
|降额||3 W/°C 为 >+60 °C|
|电压纹波与噪声 最大值||50 mVpp|
|尺寸（宽x高x深）||32 mm x 124 mm x 102 mm|
|Weight per unit (excl. packaging)||425 g|
|工作温度范围||-25 °C 至 70 °C|
|功率损耗，典型值||12.9 W , 12.9 W|
|MTBF SN 29500 @ 40 °C (h)||1178000 h|
