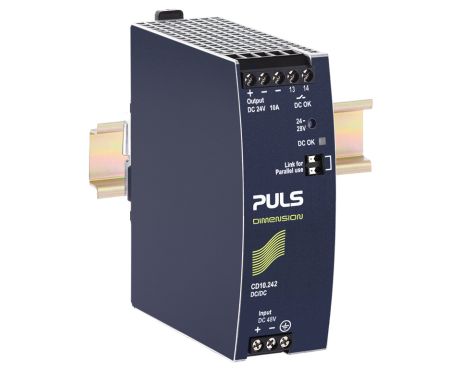

CD10.242
24 V, 10 A DC-OK信号继电器触点, 优化的并联使用
DC 输出 | 24 - 28 Vdc |
---|---|
10 - 8.6 A | |
240 W | |
输入 | DC 48 V (± 25 %) |
尺寸(宽x高x深) | 42 x 124 x 117 mm |
重量 | 520 g |
输入数据
DC输入电压 | DC 48 V (± 25 %) |
---|---|
输入浪涌电流抑制 | 主动式 |
输入浪涌电流 | 9 A |
外部输入保险丝推荐 | B-16 A / C-16 A |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 10 - 8.6 A |
输出电流 | 8.6 A 当 28 V |
10 A 当 24 V | |
输出功率 | 240 W |
功率储备 | 20 % 功率储备 |
降额 | 3.2 W/°C 为 +45 to +60 °C |
电压纹波与噪声 最大值 | 10 mVpp |
概述
尺寸(宽x高x深) | 42 mm x 124 mm x 117 mm |
---|---|
Weight per unit (excl. packaging) | 520 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 螺丝式接线端子 |
转换效率,典型值 | 94 % |
功率损耗,典型值 | 15.4 W |
DC-OK信号 | 有 |
