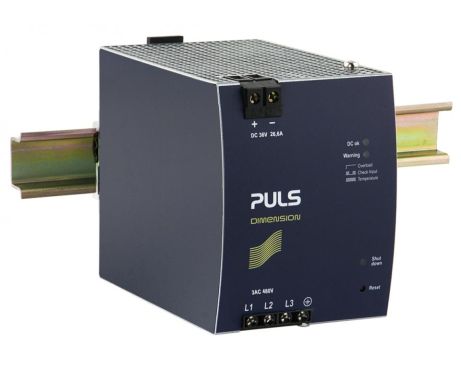

36 V, 26.6 A 半调节
|DC 输出||36 Vdc|
|输入||AC 480 V (± 15 %)|
|尺寸（宽x高x深）||96 x 124 x 159 mm|
|AC输入电压||AC 480 V (± 15 %)|
|外部输入保险丝推荐||B-6 A / C-3 A|
|输出电流||26.6 A 当 36 V|
|功率储备||25 % 功率储备|
|降额||24 W/°C 为 >+60 °C|
|电压纹波与噪声 最大值||2000 mVpp|
|尺寸（宽x高x深）||96 mm x 124 mm x 159 mm|
|Weight per unit (excl. packaging)||1400 g|
|工作温度范围||-25 °C 至 70 °C|
|MTBF SN 29500 @ 40 °C (h)||529000 h|
